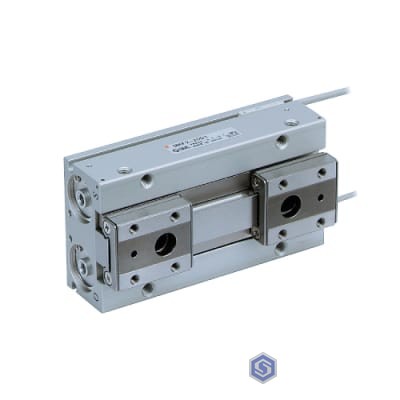

| Type | [Main Body] Main Body |
|---|---|
| How to Grip | Pinch, Chuck Type / Open, Chuck Type |
| Number of Fingers | 2 pcs. |
| Main Body Shape | Square Shape (Flat Shape) |
| Operation Method | Double Acting |
| Dimensions when open | 8 |
| Dimensions when closed | 0 |
| Gripping Force (when 0.5Mpa at opening) | 19 |
| Gripping Force (when 0.5Mpa at closing) | 19 |
| Environment, Applications | Standard |
| Additional Function | With Linear Guide |
| Stroke Adjustment Mechanism | Not Provided |
| Operating Pressure Range | 0.15～0.7 |
| Cylinder internal diameter | 8 |
| Body options | Axial piping |
| Auto switch | Without auto switch |
| Number of switches | None |
| Lead wire length | None |
| Stroke | 8 |
| Made to order specifications | None |
| Connector type for gripper opening/closing | None |
| Stroke adjustment width | None |
