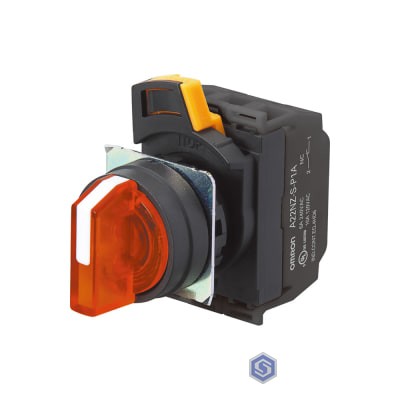

| Type | Knob type selector switch |
|---|---|
| Operating part shape | Round shape |
| Mounting Hole | [Other] For Ø22.3 / Ø25.5 mm |
| Illumination | Available |
| Contact configuration (key lock, selector) | 2a |
| With key | N/A |
| Notch number | 2 |
| Suspend/Return | [Suspend] Each Positional Stop |
| Terminal shape | Screw terminal |
| Protective Structure | Available |
| Safety standards | CE / UL / CUL / TUV / CCC / CSA |
| Operating unit dimensions: Height | 47 |
| Operating unit dimensions: Width | 30 |
| Panel depth dimensions | 69.5 |
| Bezel Material | Resin |
| Button (Transparent/Opaque) | Transparency |
| Operation Unit Color1 | Blue |
| Operation Unit Color (When Lit) | Blue |
| LED Lamp Color | Blue |
| LED Lamp Voltage | AC 100/110/120 |
| Contact (for General Load) Rated Isolation Voltage | 600 |
| Contact (for General Load) Rated Conductive Current | 10 |
| Unit Position (1-2-3) | NO-Lighting Unit-NO |
| Degree of protection (IP) | IP66 |
