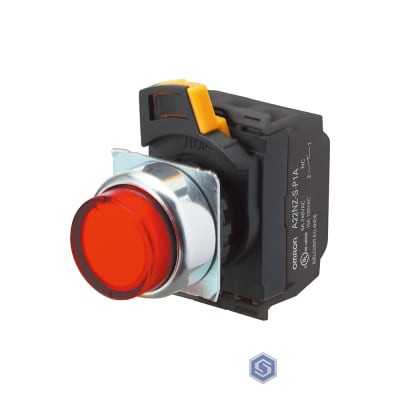

| Type | Illuminated Push-Button |
|---|---|
| Operating part shape | [Round] Full Guard Type |
| Card included | Available |
| Terminal shape | Screw terminal |
| Mounting Hole | 00050 |
| Contact Configuration | 2a |
| Operating function | Alternate |
| Color of Operating Unit | Green |
| Protection function | Available |
| Safety standards | CE / UL / CUL / TUV / CCC / CSA |
| Operating part dimensions - vertical | 47 |
| Operating part dimensions - horizontal | 30 |
| Panel depth dimensions | 64.4 |
| Bezel Material | Resin |
| Button (Transparent/Opaque) | Transparency |
| Button Color (when Lit) | Green |
| LED Lamp Color | Green |
| LED Lamp Voltage | AC/DC 24 |
| Contact (for General Load) Rated Isolation Voltage | 600 |
| Contact (for General Load) Rated Conductive Current | 10 |
| IP Protection Degree | IP66 |
| Unit Position (1-2-3) | NO-Lighting Unit-NO |
