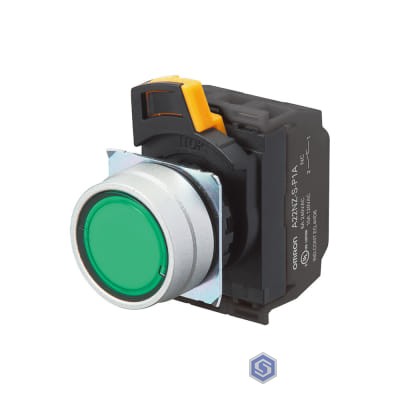

| Type | Illuminated Push-Button |
|---|---|
| Operating part shape | [Round] Protruding Type |
| Card included | N/A |
| Terminal shape | Screw terminal |
| Contact Configuration | 1a / 1b |
| Operating function | Momentary |
| Color of Operating Unit | White |
| Protection function | Available |
| Safety standards | CE / UL / CUL / TUV / CCC / CSA |
| Operating part dimensions - vertical | 47 |
| Operating part dimensions - horizontal | 30 |
| Panel depth dimensions | 64.4 |
| Bezel Material | Metal (Round) |
| Button (Transparent/Opaque) | Transparency |
| Button Color (when Lit) | Milky White |
| LED Lamp Color | Yellow |
| LED Lamp Voltage | AC 100/110/120 |
| Contact (for General Load) Rated Isolation Voltage | 600 |
| Contact (for General Load) Rated Conductive Current | 10 |
| IP Protection Degree | IP66 |
| Unit Position (1-2-3) | NO-Lighting Unit-NC |
