| Housing material | Cast brass |
|---|---|
| Seals material | NBR |
| Material of screws | High-alloy stainless steel |
| Degree of protection | IP65 |

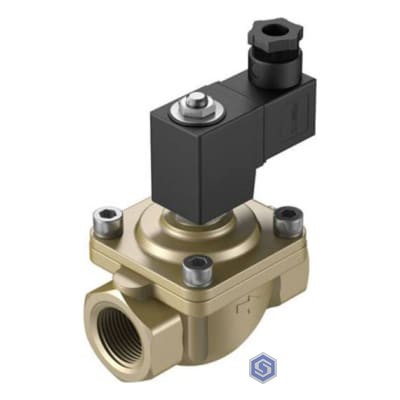

| Valve function | 2/2, closed, monostable |
| Nominal width | 27.5 |
| Standard nominal flow rate | 11750 |
| Flow direction | Non-reversible |
| Switching time off | 290 |
| Switching time on | 275 |
| Fitting connection | G1 |
| Nominal pressure of fitting PN | 40 |
| Flow rate Kv | 11 |
| Min. Medium pressure | 0 |
| Mix. Medium pressure | 6 |
| Min. Temperature of medium | -10 |
| Max. Temperature of medium | 80 |
| Min. Ambient temperature | -10 |
| Max. Ambient temperature | 35 |
| Medium | Compressed air as per ISO 8573-1:2010 [7:-:-], Water, Neutral liquids, Mineral oil, Inert gas, Other flow media on request |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Manufacturer part # | 1492306 |
| Weight | 1500 |
